APR ECU Upgrade - 2.0T TSI EA888 Gen2 VL - Early

FREE installation on virtually all new ECU & TCU upgrade purchases!

APR is pleased to present the ultimate engine control unit (ECU) upgrade for the 2.0 TFSI engine with Audi Valve lift! APR’s ECU upgrade is available in octane-specific variations and is conveniently flashed to the vehicle’s factory ECU through the OBD-II port without any physical modification to the factory ECU. APR’s EMCS functionality puts the control of the engine’s operation at your fingertips and allows for additional features and options to be installed to the OEM ECU.

The Bosch MED17 engine management system is responsible for proper operation of the engine during constantly changing environmental and load conditions. With built in compensational data for environmental variables and varying load conditions, the factory ECU is far more complex and intelligent than units found in other vehicle makes and marques.

APR's Calibration Engineers spent months calibrating the engine management system, including many hours of chassis dyno development. With a thorough understanding of the ECU’s torque structure, APR’s Calibration Engineers properly increased engine load to produce more power and torque across the entire power band. APR’s ECU Upgrade increases turbocharger boost pressure and optimizes cam timing, valve lift, ignition timing, lambda and more to produce higher output. Using APR’s proprietary high-speed data logging suite, the calibration team closely monitored the effects of these changes to help ensure an enjoyable driving experience.

APR’s ECU Upgrades provides an excellent leap in horsepower and torque while retaining OEM knock control sensitivity and other built in safety features. This results in an exciting and powerful upgrade, optimized for various fuel grades found around the world!

APR Stage I ECU Upgrade:

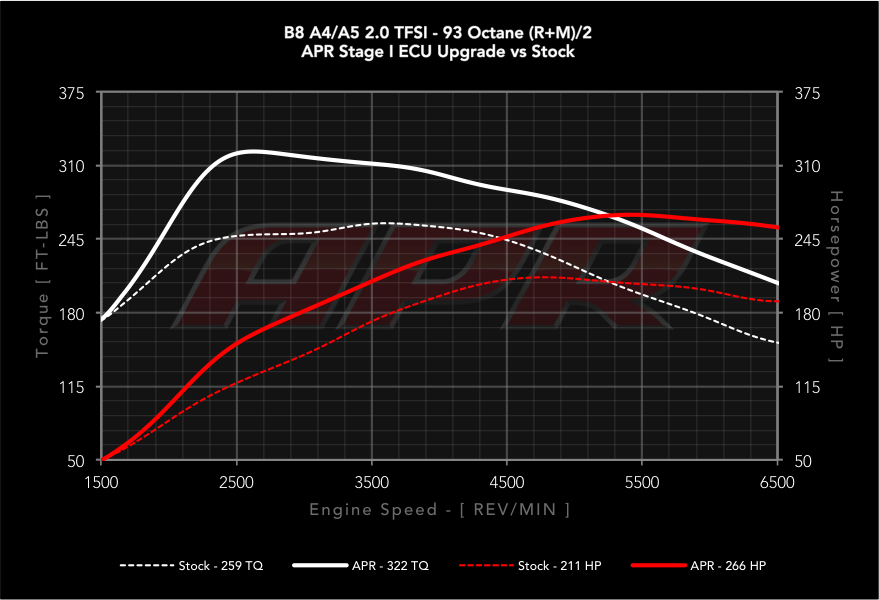

APR’s ECU upgrades are one of the best horsepower-per-dollar modifications for the new 2.0T engine. The APR Stage I ECU Upgrade is designed to work without requiring other changes to the vehicle’s hardware. With the ECU Upgrade alone, APR’s Calibration Experts measured higher peak figures of 323 ft-lbs of torque and 266 horsepower with 93 AKI octane fuel. Large gains were seen throughout the power band, including an additional 74 ft-lbs of torque and 78 horsepower. Even higher figures were achieved using race fuel.

APR ECU Upgrade Standard Features:

Acceleration Enhancements: Beyond horsepower and torque enhancements, APR’s Calibration Engineers were able to increase the acceleration rate of the vehicle through other calibrations changes. Ignition delay is reduced resulting in a more responsive pedal without altering overall throttle sensitivity. Furthermore, throttle lag commonly noticed at slow speeds and while reapplying throttle has been reduced.

Speed Limiter: APR’s ECU upgrade increases the vehicle's top speed limiter for blistering sprints around the track or across the Autobahn without the speed limiter shutting down the fun.

Left Foot Braking: APR's Left Foot Braking feature allows more control over the vehicle’s throttle. The factory equipped vehicle's throttle input is disabled while pressing the accelerator and brake at the same time. Left Foot Braking, a common motorsport driving technique, allows the driver complete control over the vehicle’s throttle and braking system, which may give the vehicle the edge it needs at the track.

Motorsport Rev Limiter: APR’s Motorsport Rev Limiter allows the engine to reach max RPM without the ECU slowing down acceleration nearly 150 RPM earlier. The result is more power to redline and a definable redline feeling as seen on Audi Quattro GMBH vehicles such as the RS4, RS5 and R8.

Increased Fuel Economy: APR’s Calibration Engineers paid close attention to several parameters directly related to fuel economy, especially while cruising at highway speeds. Depending on driving style and fuel quality, better miles per gallon may be achieved.

APR EMCS Programs and Features:

APR’s Enhanced Modular Chipping System, (EMCS), brings selectable programs and features to the factory ECU, without the need to purchase external hardware switching devices. EMCS has the ability to completely rewrite the entire operating map data within the ECU, giving each program mode a completely different set of calibration changes. On this platform, this is contrary to the industry norm of capping limits, using multipliers, only swapping portions of a base calibration, or relying on knock activity to lower output. APR’s EMCS features and programs modes are activated via the factory OEM cruise control buttons, and optionally through APR Mobile.  The vehicle’s cruise control will function normally while driving.

Program Switching: Program switching allows the user to cycle through up to four different engine calibrations and operating modes all without the need for external hardware.

Stock Mode: By selecting stock mode, the ECU calibration is reduced to factory load levels, limiting performance.

APR Performance Modes: APR's octane-specific calibrations are available for various premium and race fuels around the world. Each performance mode is a completely new calibration, altered specifically for the characteristics of the fuel quality selected

Fault Code Erase: Fault code erase allows the user to erase and reset engine related trouble codes and ECU adaptation data without using a specialty tool.

Security Lockout: Security lockout prevents unauthorized individuals from using APR's EMCS functionality. When enabled, APR's EMCS features will appear completely invisible until a user specified 2 to 4-digit security code is entered.

Anti-Theft: When activated, Anti-Theft prevents normal operation of the engine even if the factory key is used. The vehicle will be completely immobilized until a user specified 2 to 4-digit security code is entered.

Valet Mode: APR's Valet Mode protects your vehicle from becoming an expensive toy for unauthorized individuals. By enabling Valet Mode, the vehicle's performance is extremely limited.
